Overview
Available color:

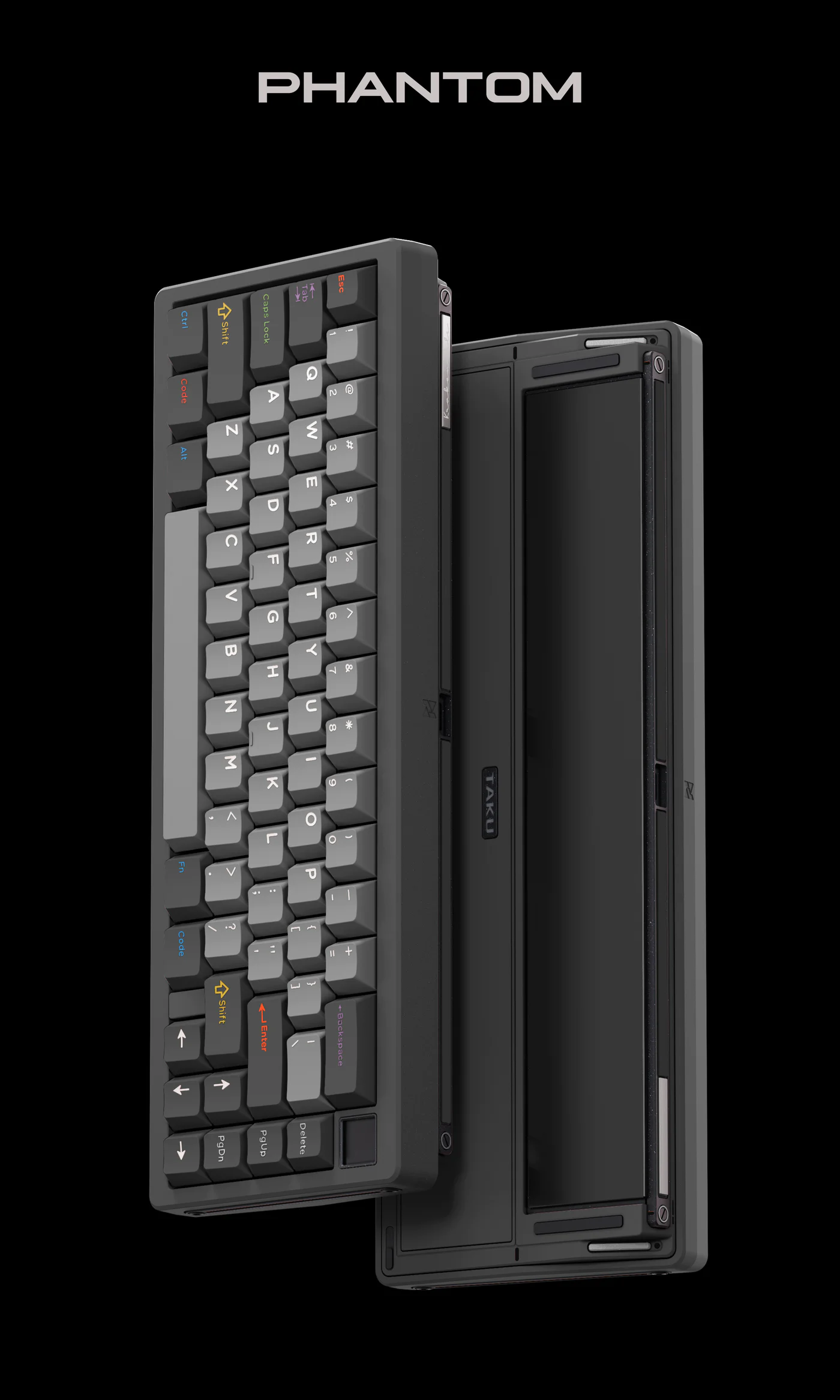

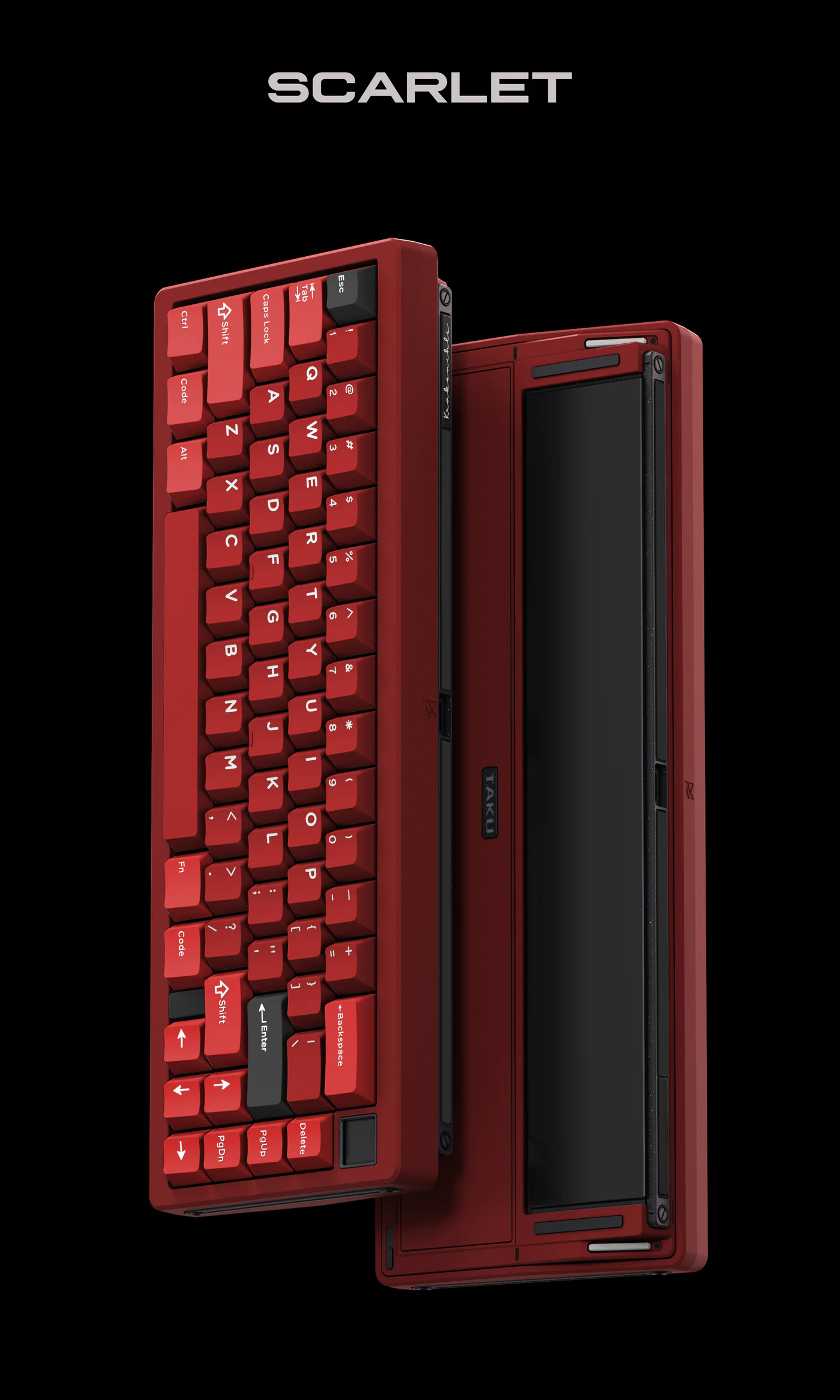

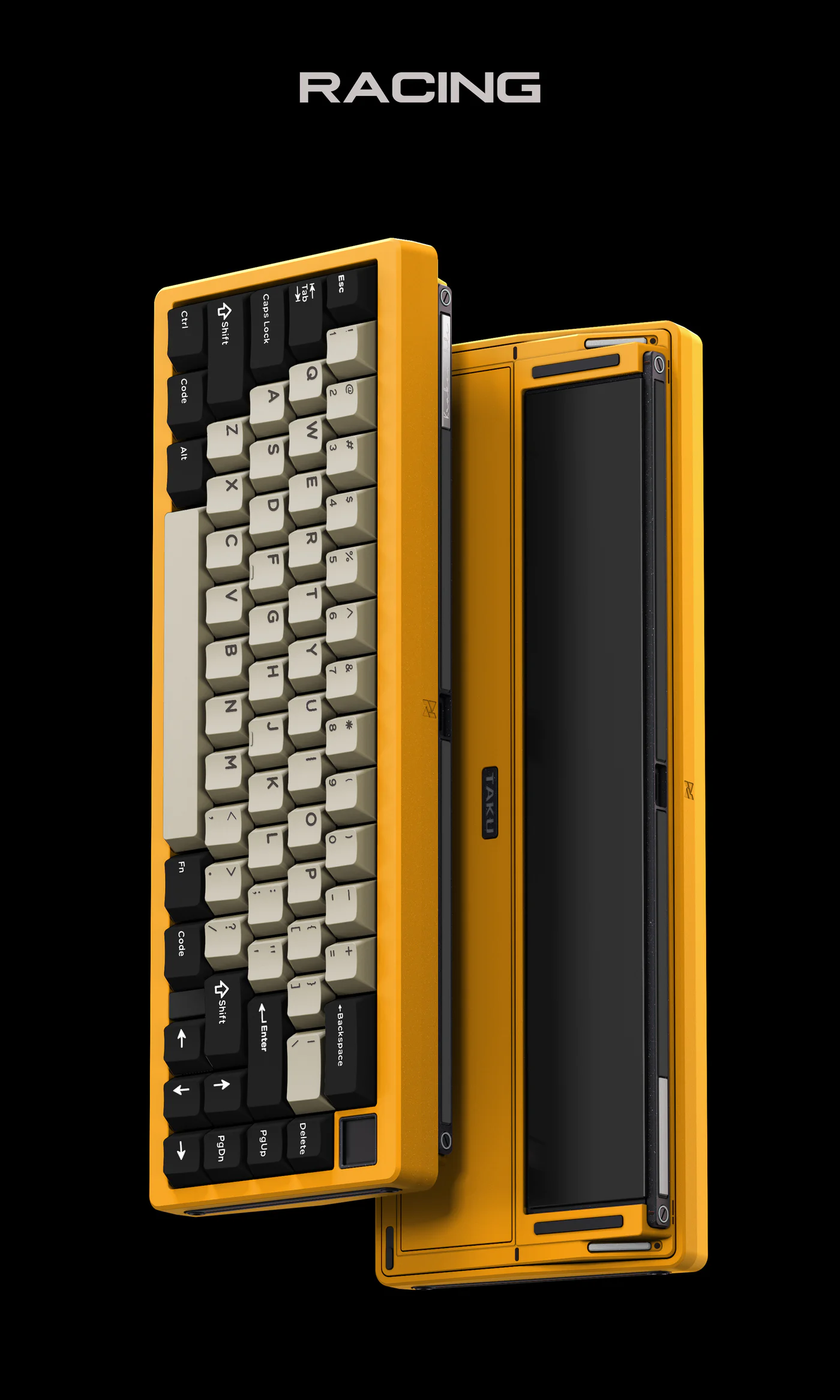

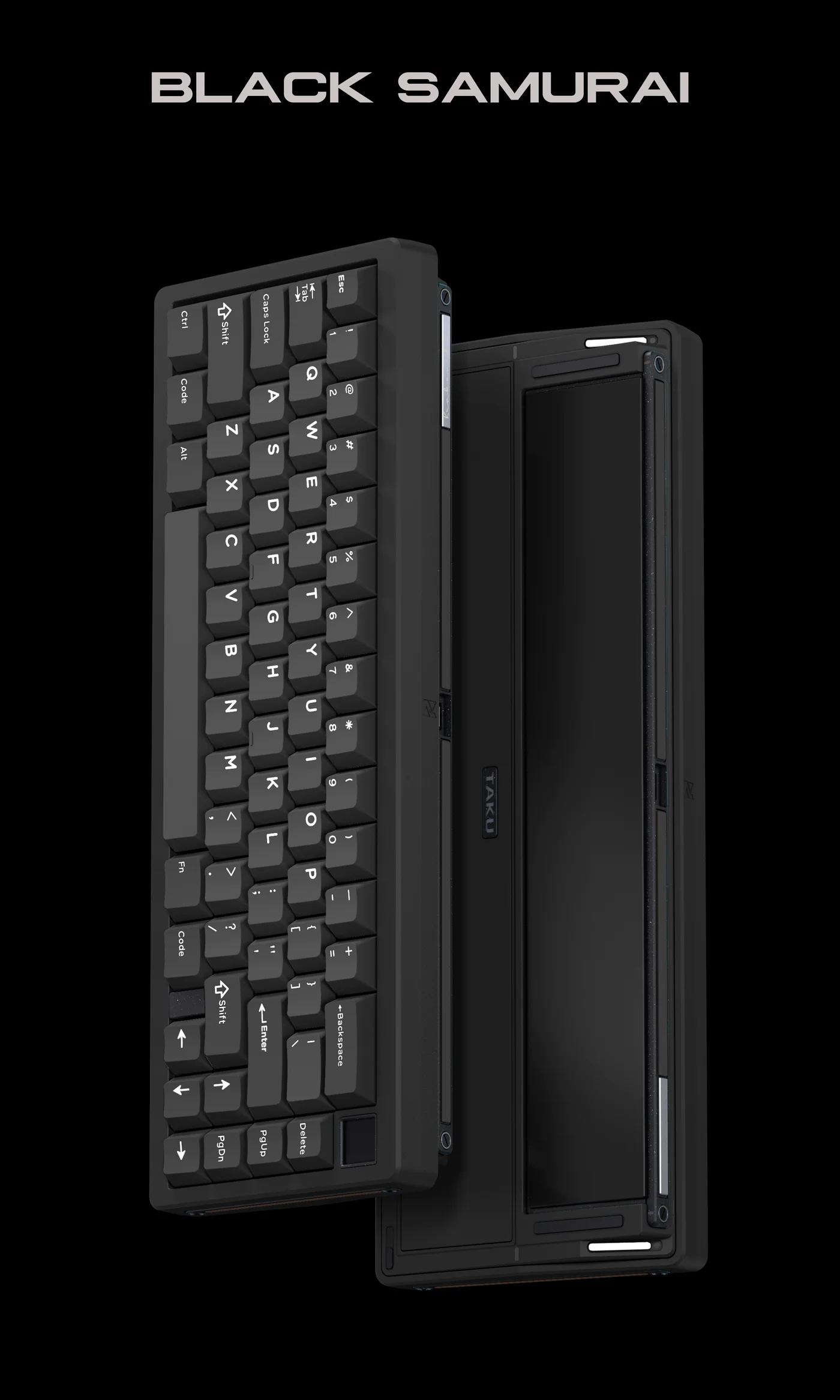

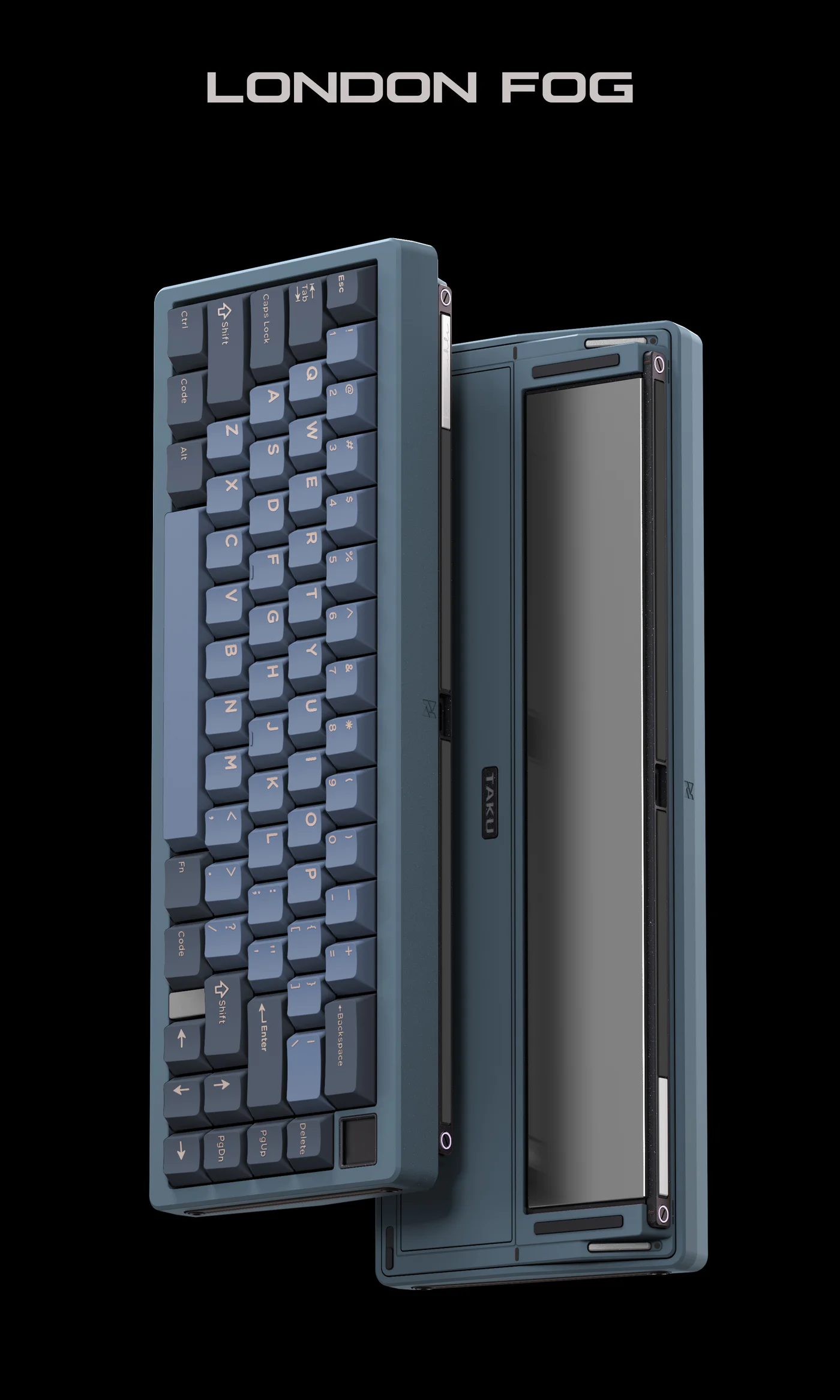

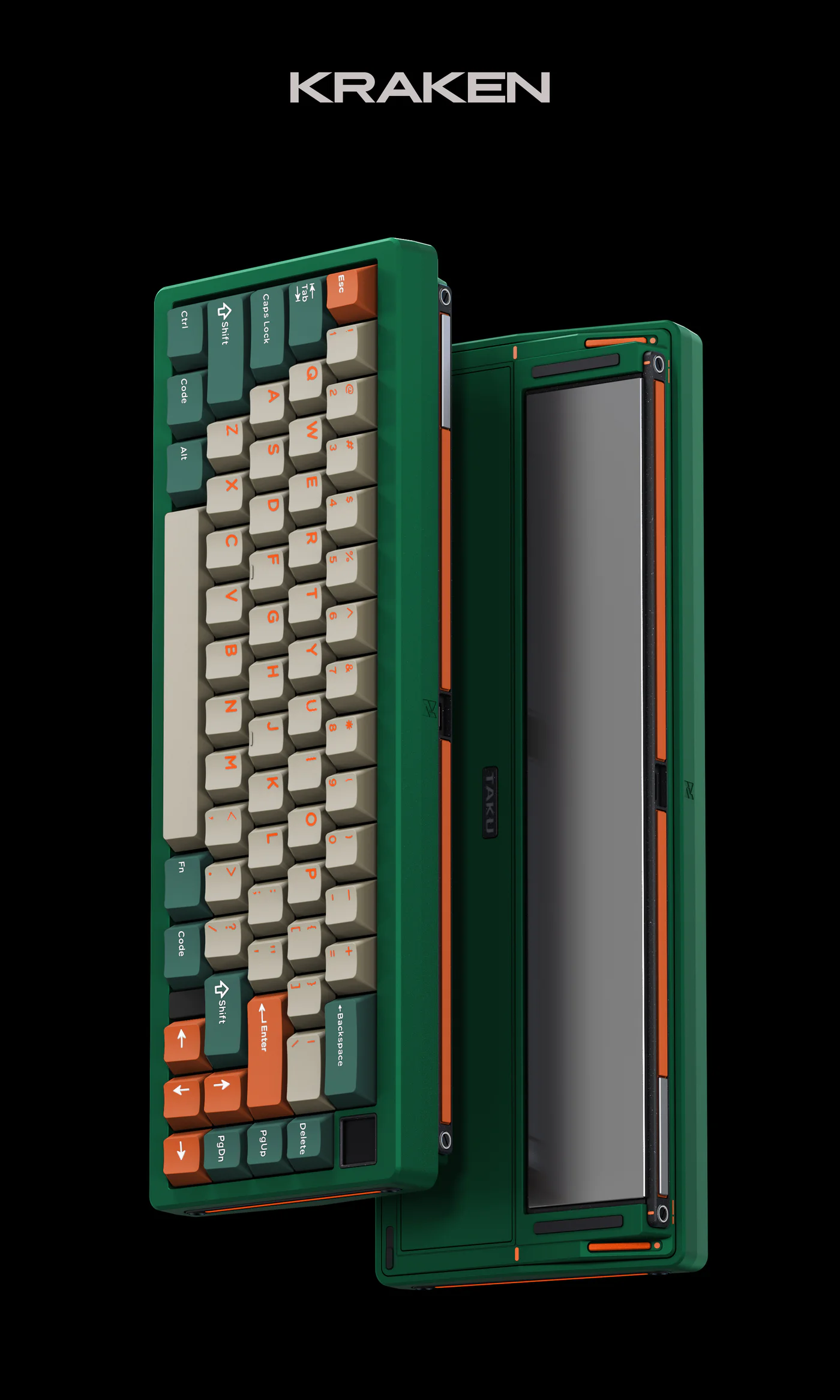

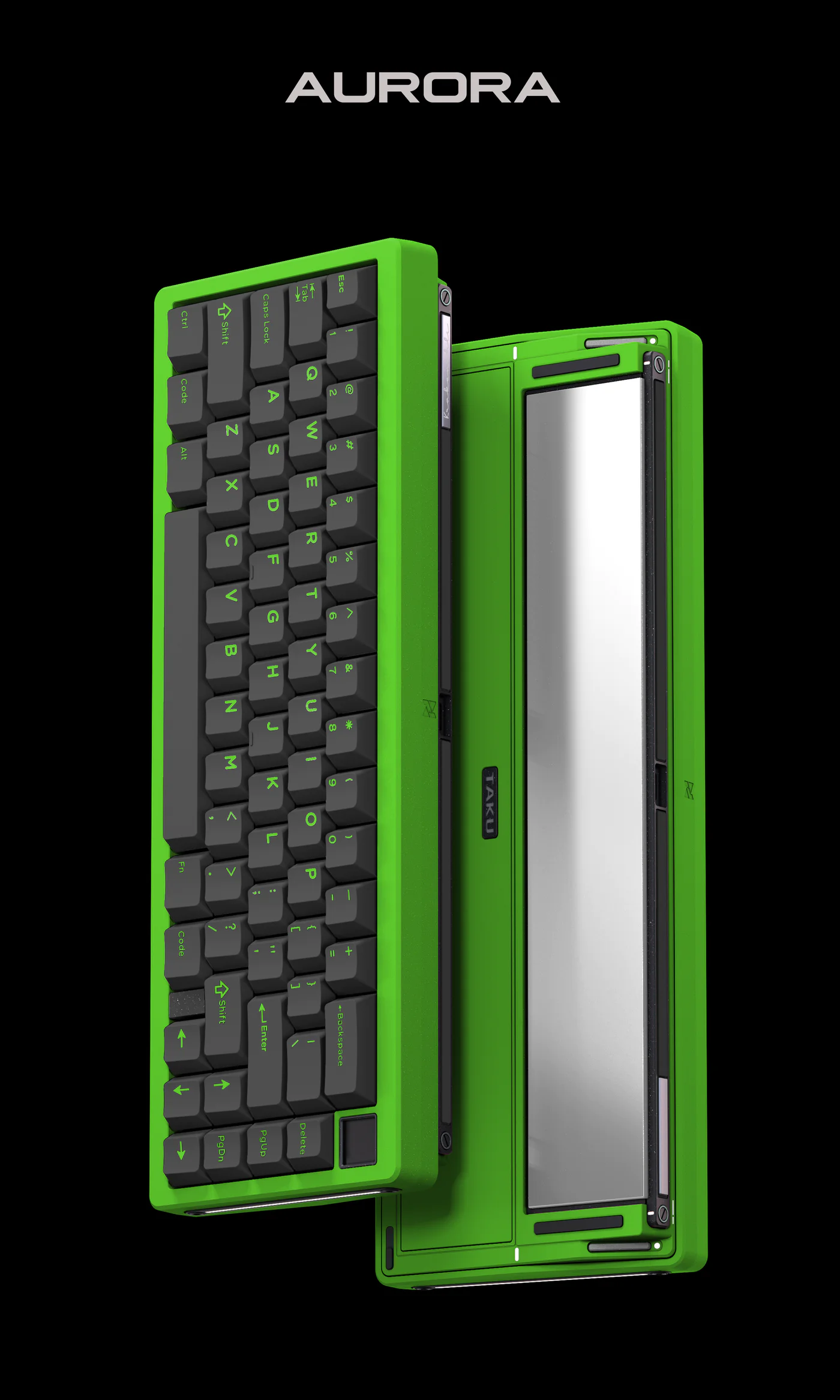

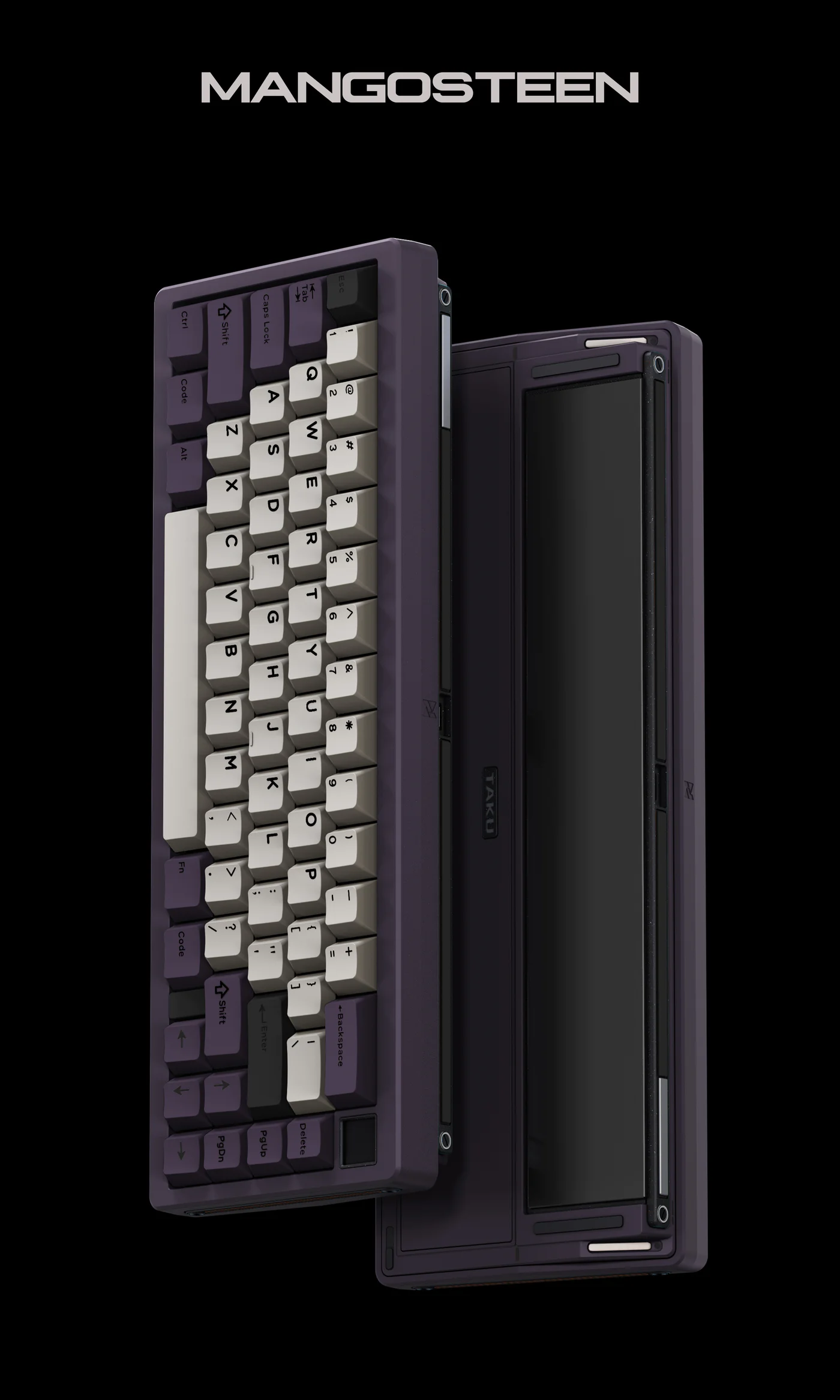

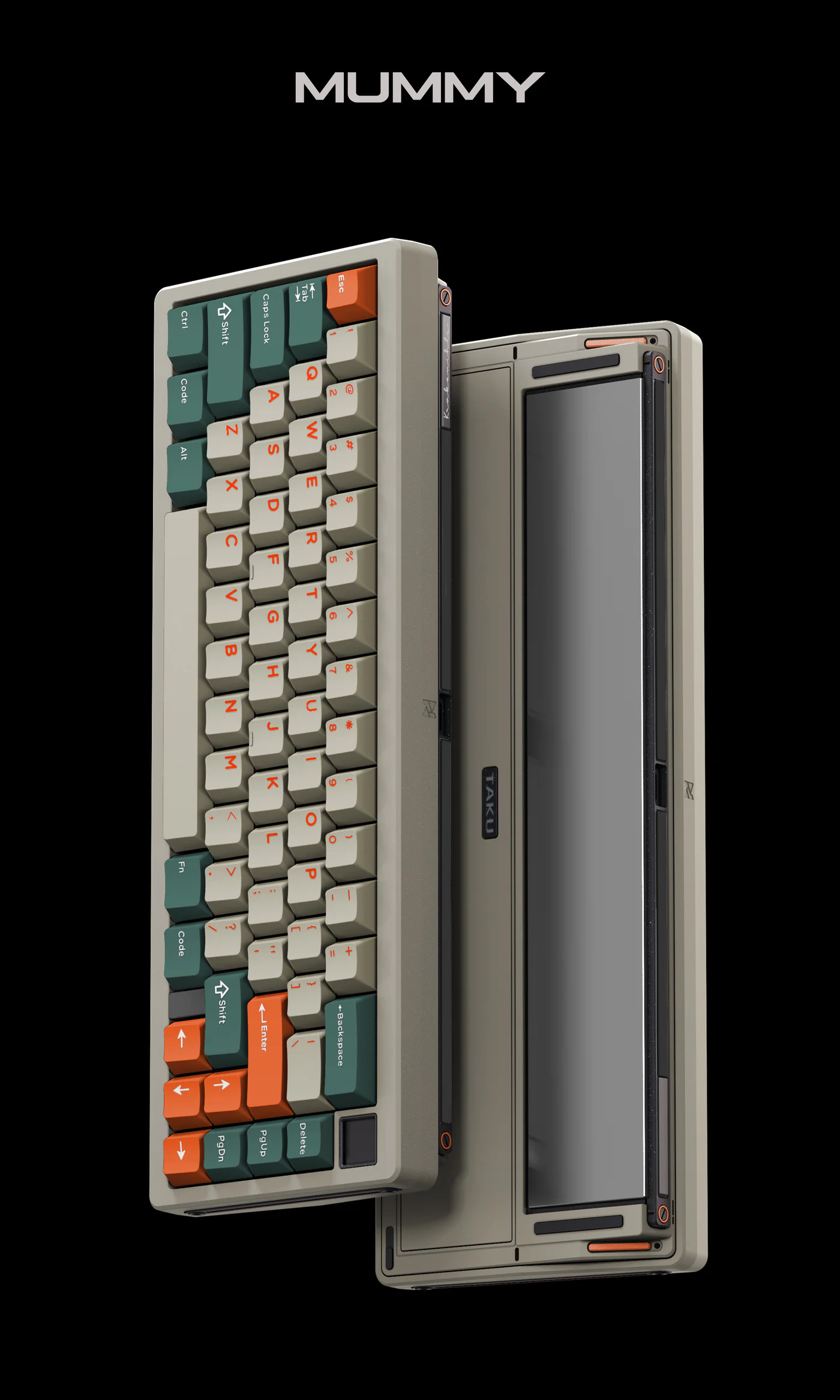

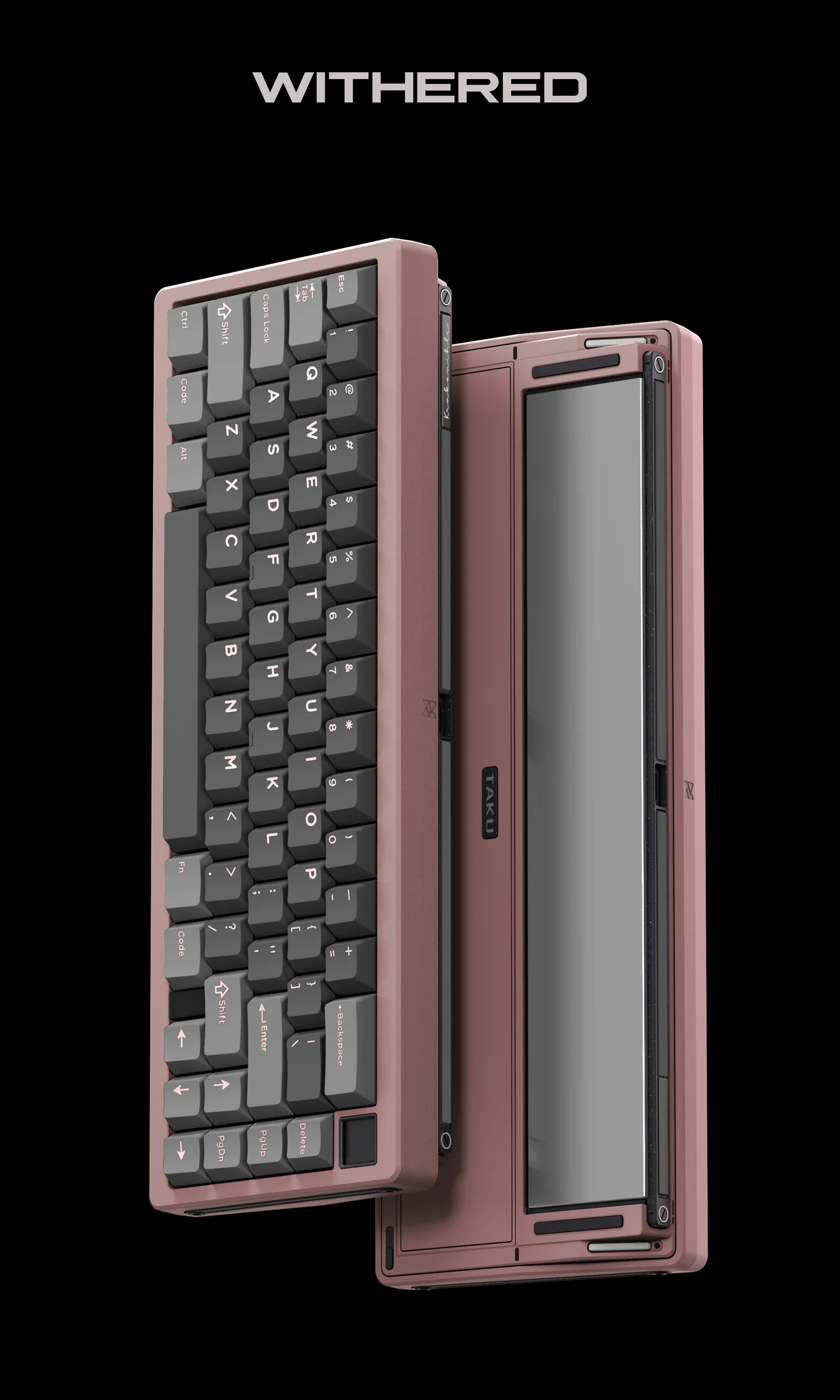

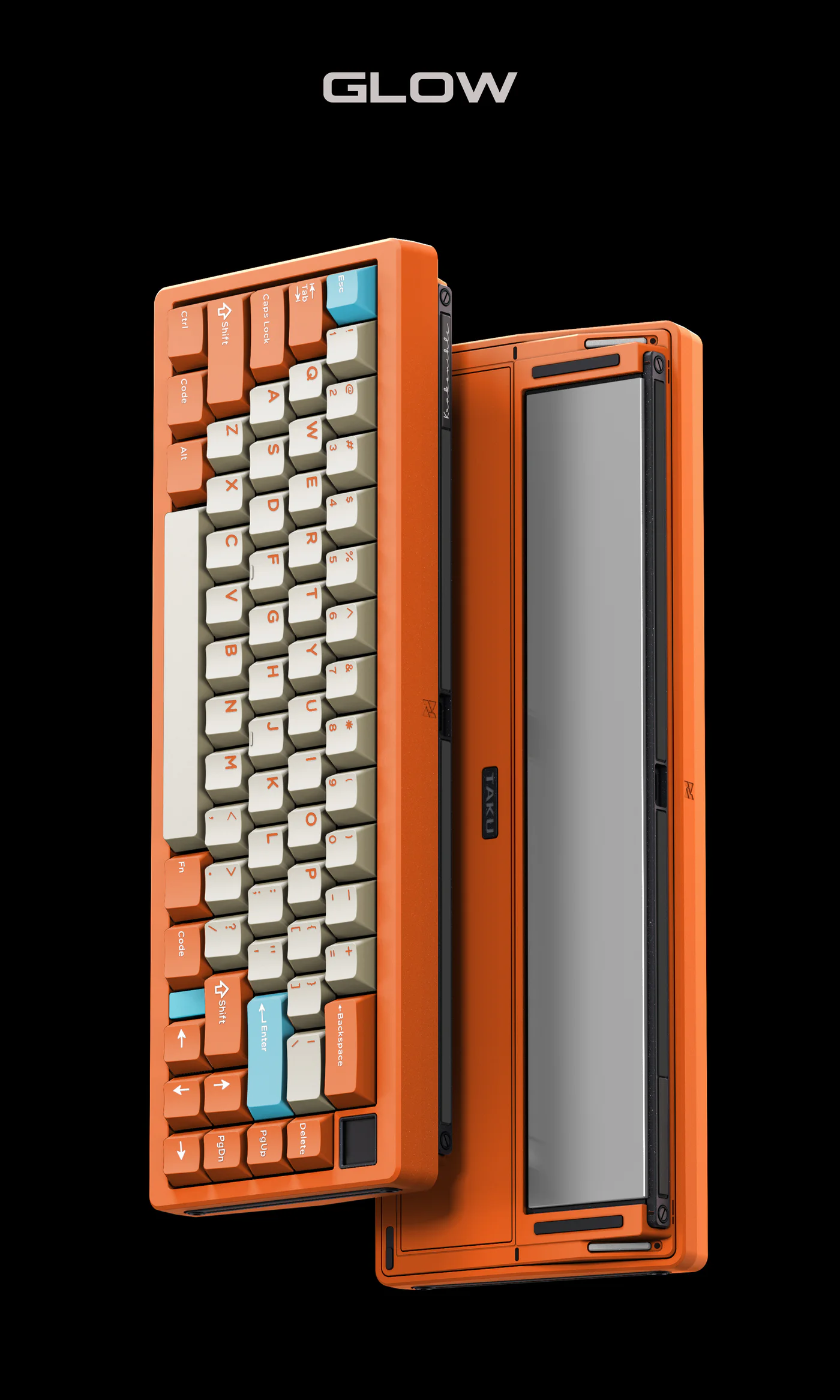

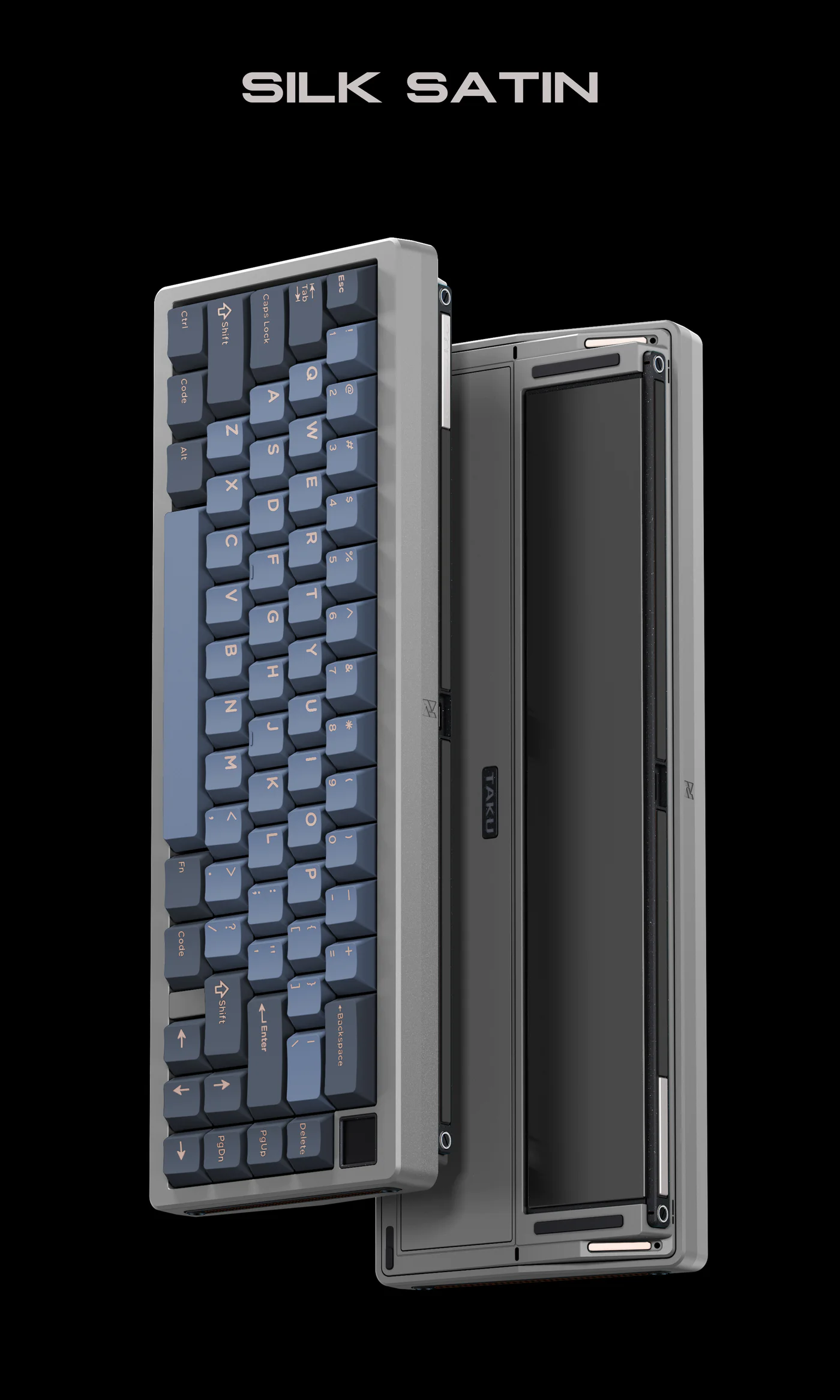

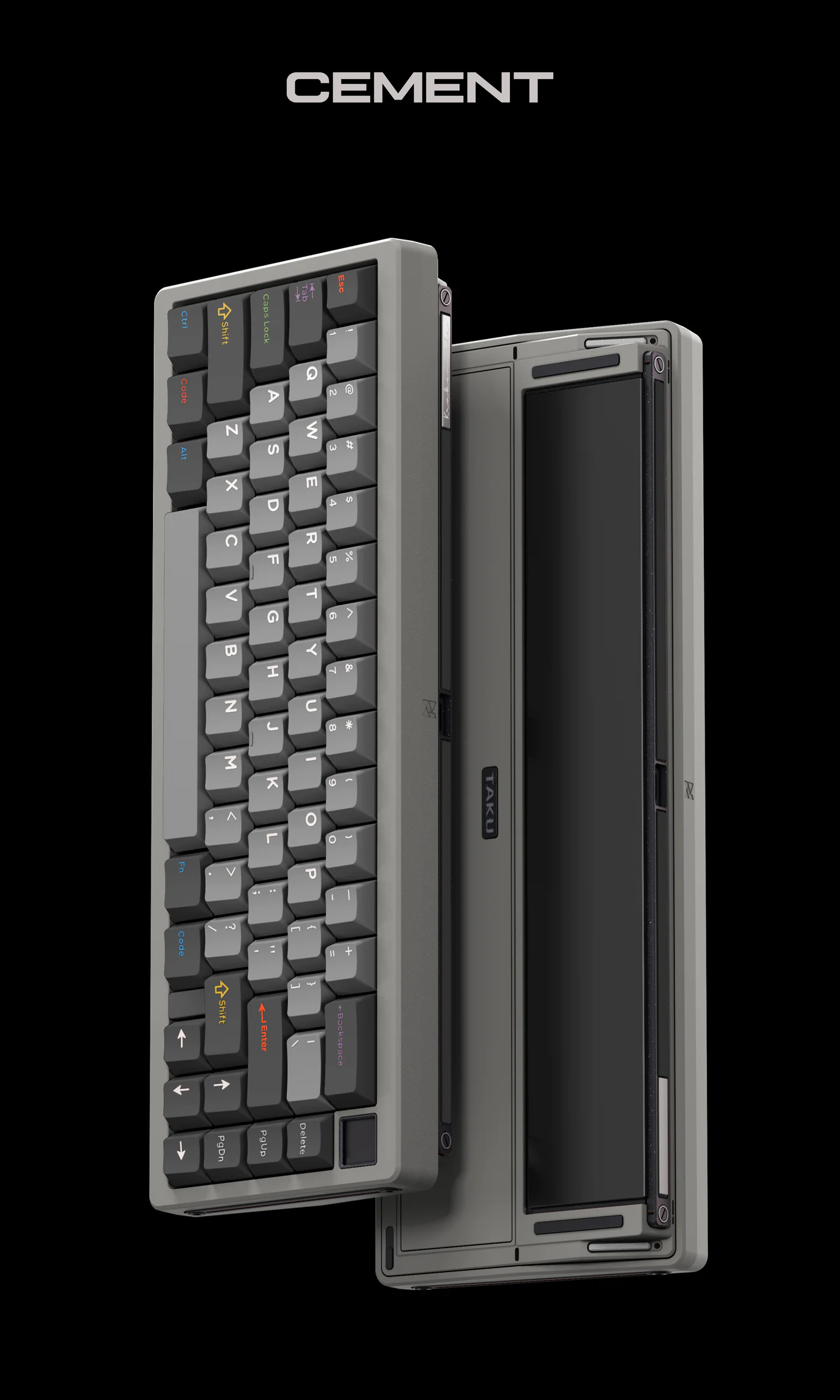

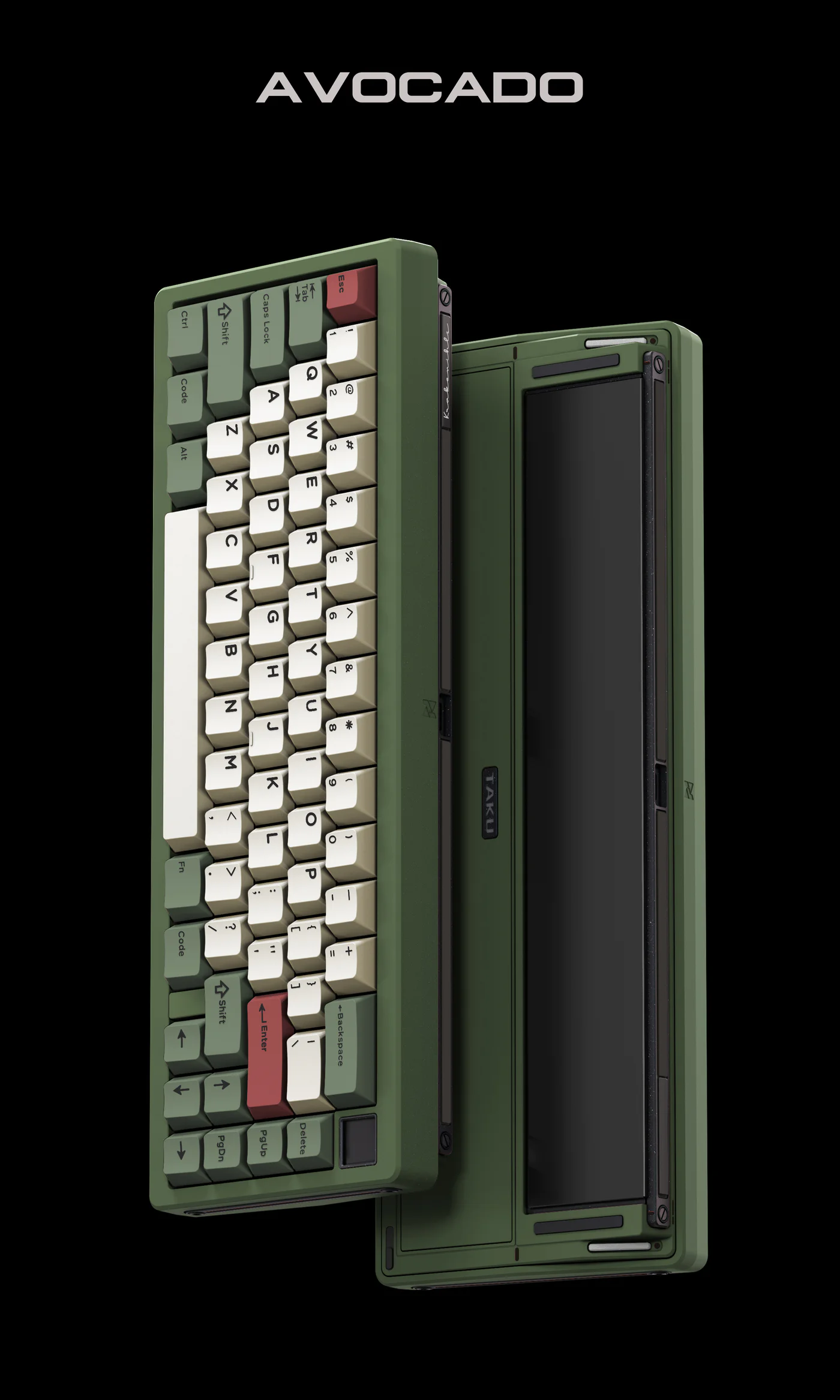

Mummy / Black Samurai / Racing / Avocado / Glow / Scarlet / London fog / Cement / Phantom / Withered / Aurora / Kraken / Mangosteen / Silk Satin / O1
Mounting Style:

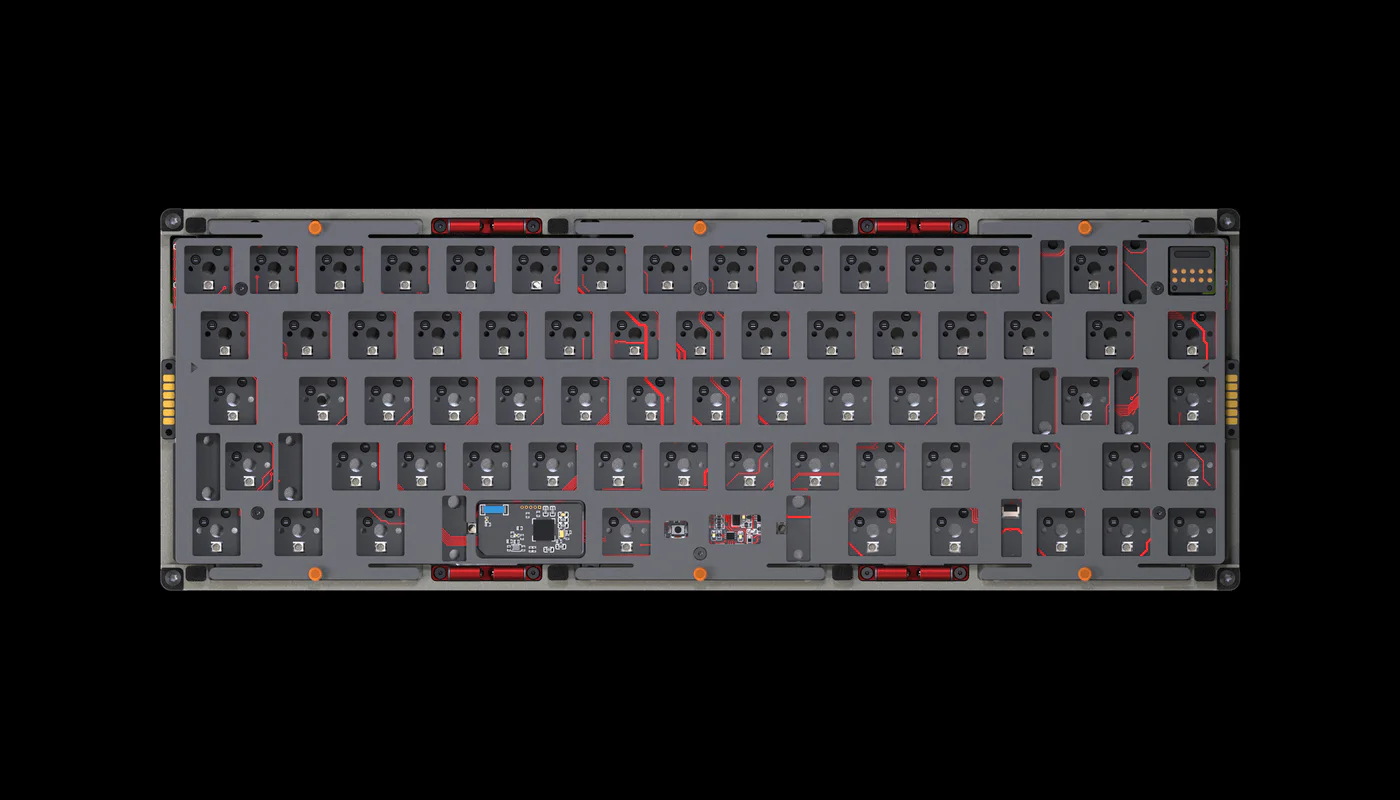

Plate options:

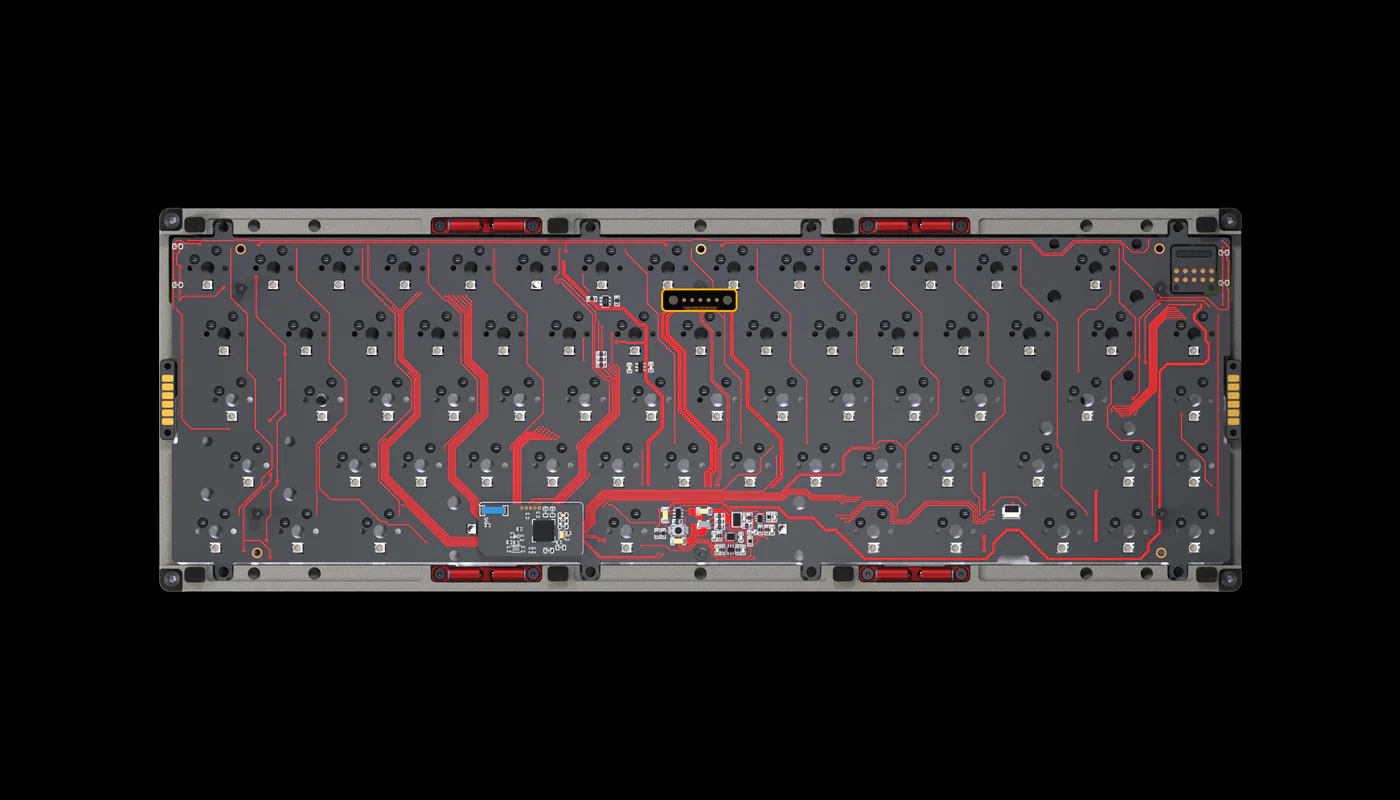

PCB:

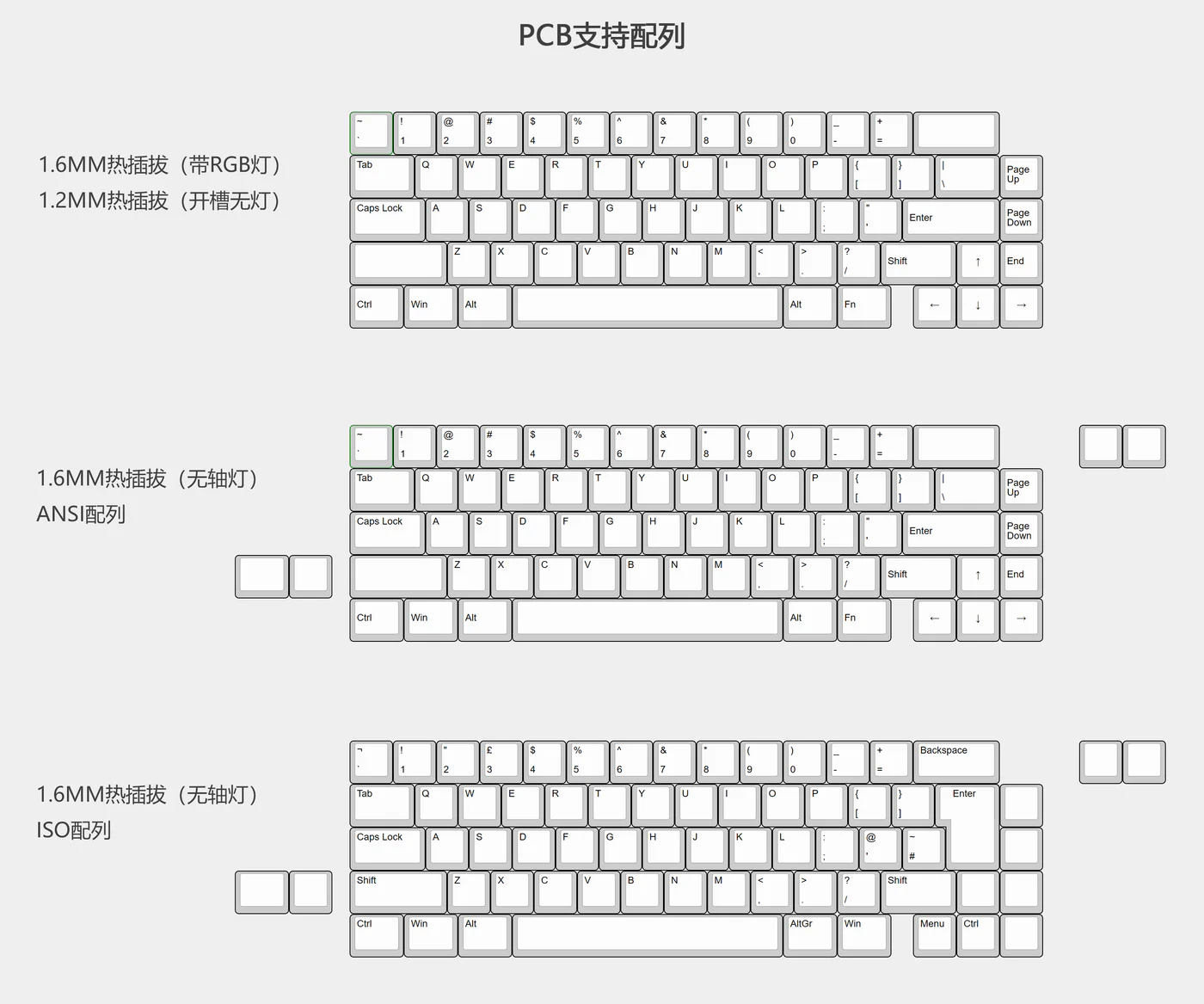

Layout:
Front Module:
01. Screen module:

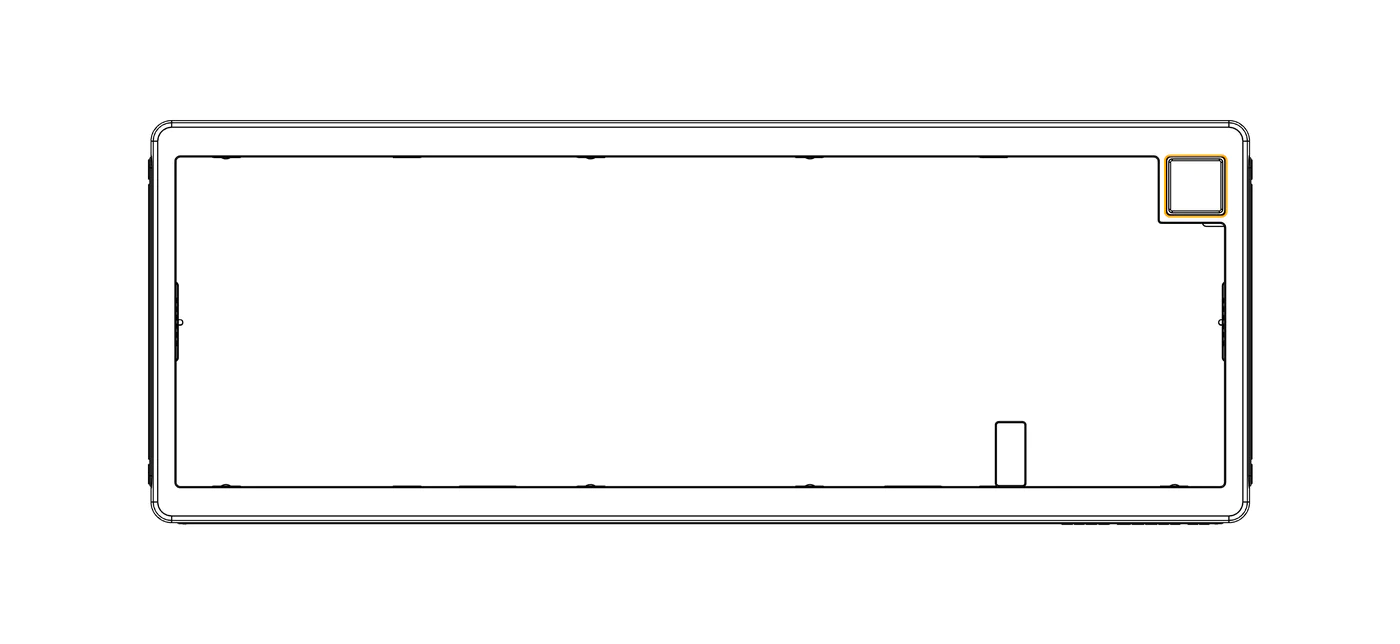

On the front of the keyboard, we designed a 1U-sized screen
Screen parameters: Resolution: 128*128, Function support: key trigger display key value / picture wallpaper / system configuration display Border: multiple color borders can be replaced
02. Fingerprint module:
The screen module can be removed and replaced with a fingerprint module.
Fingerprint module parameters: Number of supported fingerprints: 20 Fingerprint function: Each fingerprint can be set as a macro/text password Supported system: The fingerprint module is not restricted by the computer system, and the module and keyboard chip independently complete the linkage function.
Side Module:

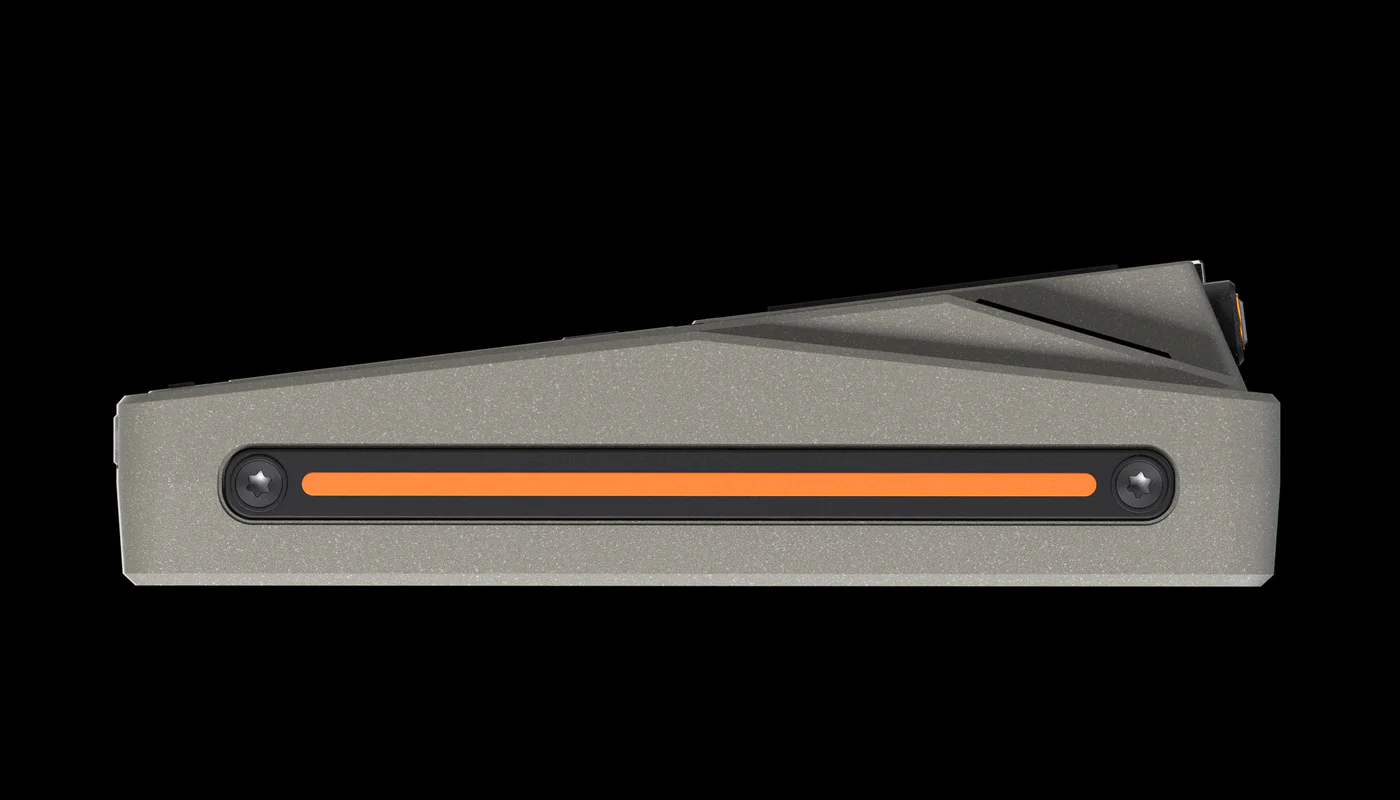

On the side of the keyboard, we designed two symmetrical touch strips, each with 3 key values, which can be set as function keys through the driver such as volume up and down, music controller, mouse wheel design, and the touchpad style will support skin replacement.
Structure
In terms of feel and sound, we have explored for nearly half a year, from the material of PCB, to the hardness of the conductive medium material, to the design of the entire cavity structure, we have optimized the internal structure and made new upgrades in sound and feel. We retained the traditional gasket structure and added the positioning plate silicone bean structure and the PCB silicone bean structure. As a result, we have achieved the current mainstream OG and soft elastic feel experience on TAKU 65%.
Gasket:

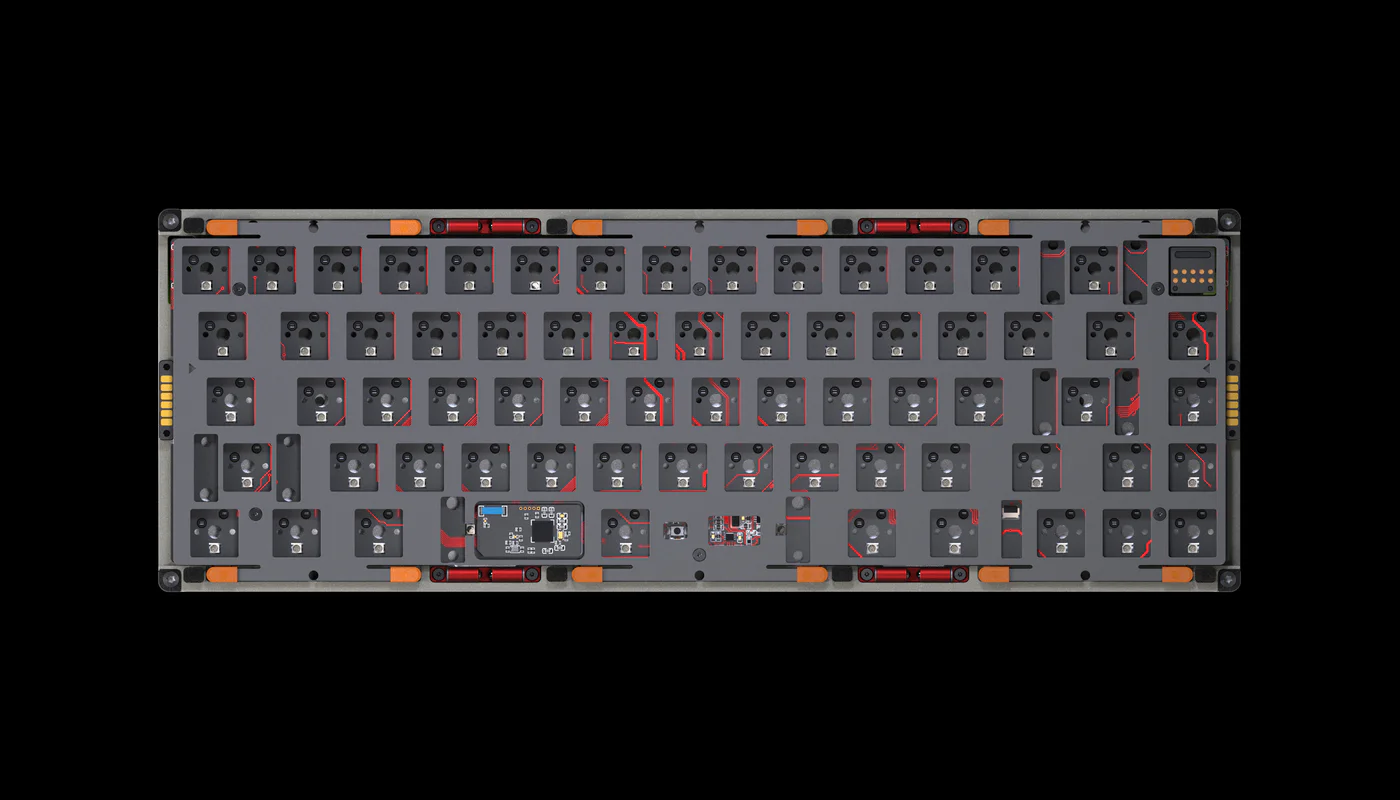

Positioning plate silicone bean structure:
With 1.6MM non-slotted PCB, you can get a relatively crisp, clean and tight sound and feel

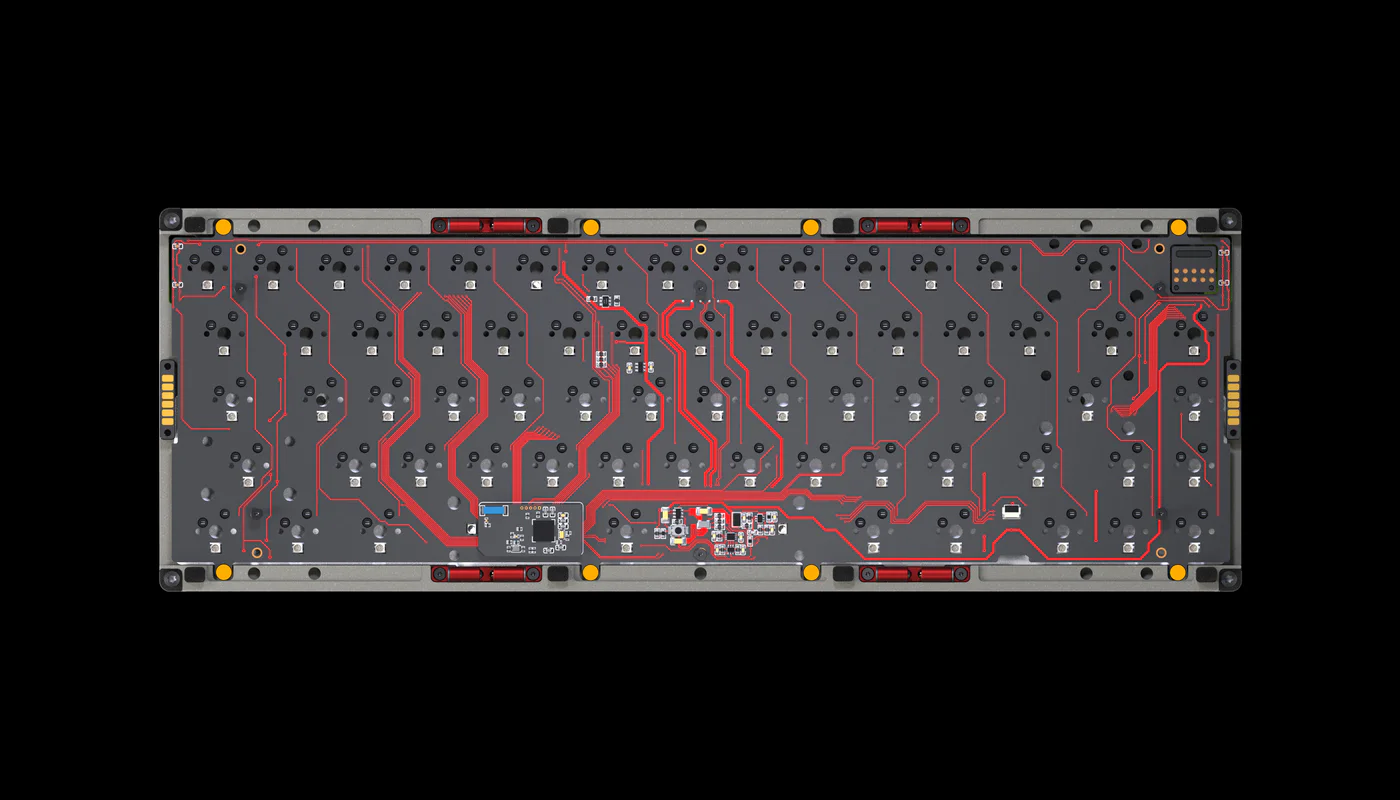

PCB Silicone Bean Structure:
With a 1.2MM slotted PCB, you can get a relatively soft and muffled sound and feel!

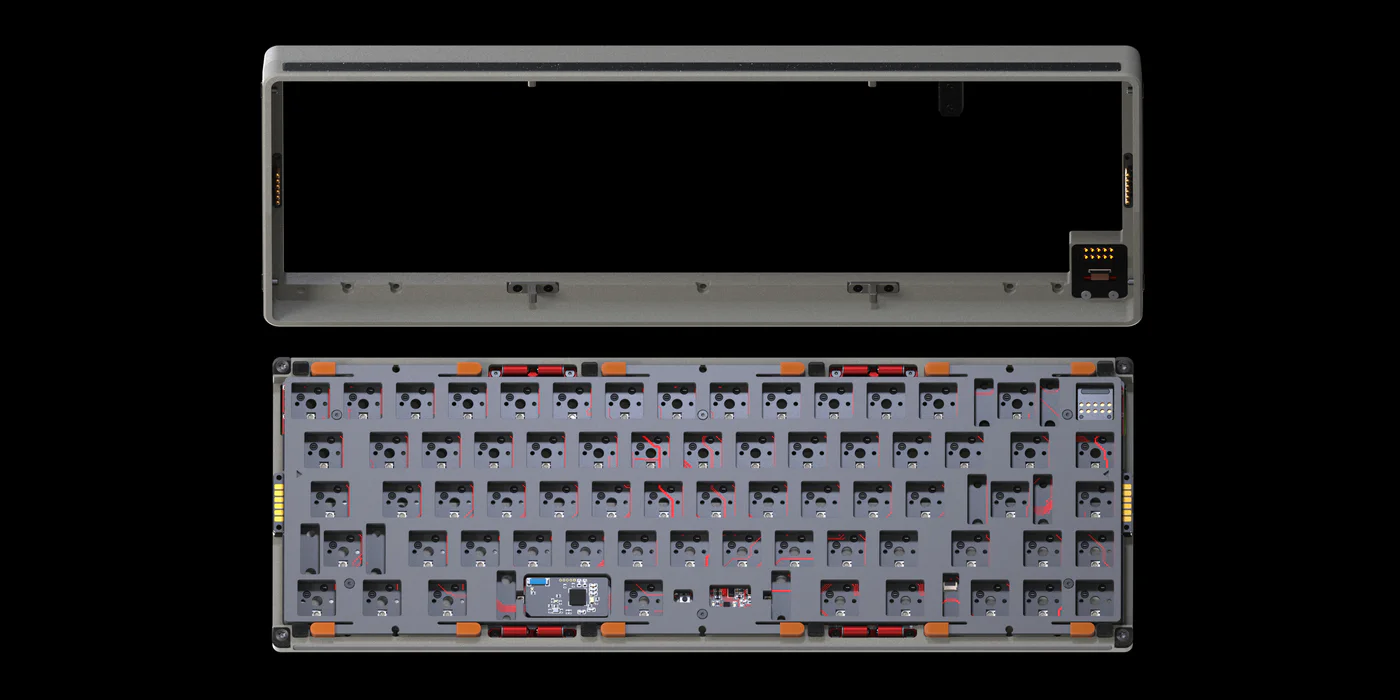

Connection method between liner and module:
It adopts the fixing method of hanging magnetic terminal, and connects the male end of magnetic terminal to the USB board through the cable
Quick disassembly structure:
In order to ensure that the frame ratio is not limited by the size of the quick release, we designed a bead design as small as 3 mm, reducing the width of a single bead module to 4.4 mm.
The bottom part of the bumper module has been colored by anodizing, and it will also be synchronized with the color of the lower cover of the keyboard. The top part of the quick-release module has been hard-oxidized to ensure its service life!
Back design:
For the back strip design, we provide the option of customizing the nameplate

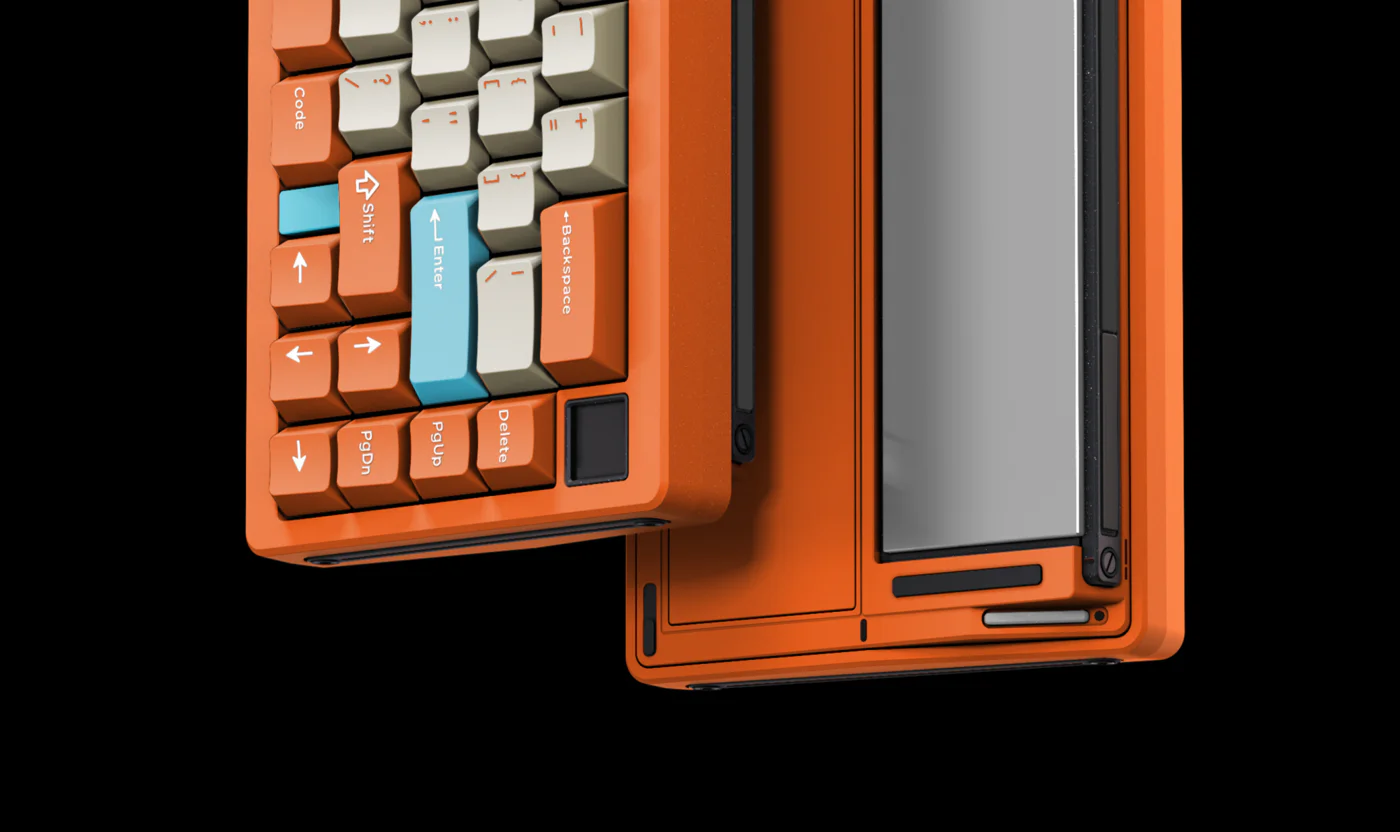

Bottom module:

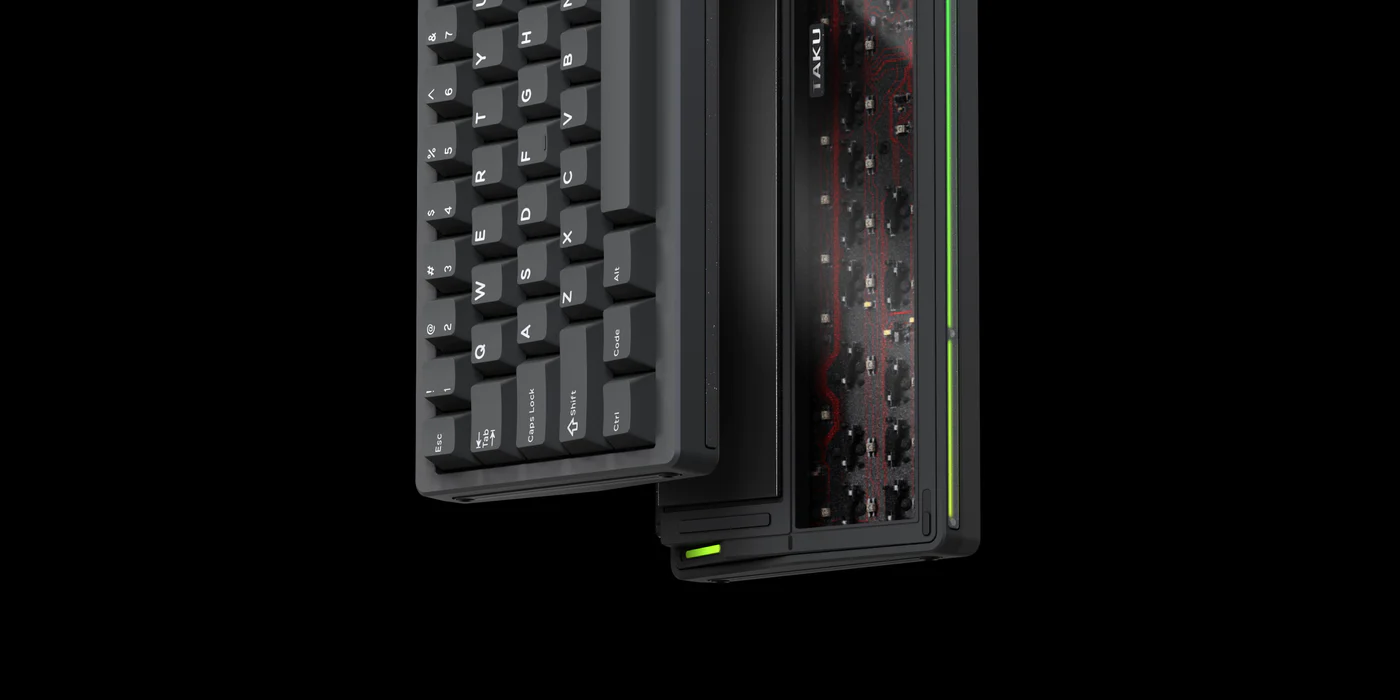

In the design of the bottom cover, for the sake of playability, we did not hesitate to increase a large part of the CNC cost and designed a detachable cover design. By replacing the transparent bottom cover, the internal structure design can be seen from the outside. At the same time, we added two floor washing lights at the bottom, which can also achieve ambient volume sensing lighting effects!
Layout:
Color
